Rekoding Machine Baru

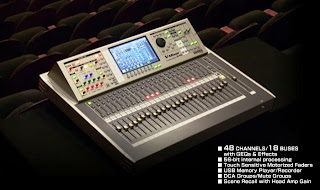

V-Mixer M-400 Specifications
PROCESSING
Number of Channels
48 inputs / 18 buses
Signal Processing
56-bit
AD/DA Conversion 24-bit / 44.1kHz or 24-bit / 48kHz
Network Latency 2.8 ms (typical)
* Total System Latency of audio signal from S-1608 inputs to
outputs via M-400's REAC ports (A or B).
* Sample Rate: 48.0 kHz
* Effects : No insert effects
CONNECTORS
XLR Inputs (1 to 8 )
XLR-3-31 type (balanced with phantom power)
Talkback Mic Input XLR-3-31 type (balanced with phantom power)
RCA Inputs (L/R) RCA Pin Type
XLR Outputs (1 to 8 ) XLR-3-32 type (balanced)
Phone Output
Stereo 1/4 inch phone type
Digital Outputs Optical type x 1 and Coaxial type x 1
REAC Ports RJ-45 EtherCon type x 3
USB Ports A type x 1 and B type x 1
Remote Connectors RS-232C (D-Sub 9 pin type) x 1*
MIDI (5 pin DIN type) x 2 (Out/Thru & In)
* Serial remote control is not available on version 1 firmware
Other Connectors LAMP (XLR-4-31 type) x 1, Grounding terminal, AC Input
INPUT / OUTPUT CHARCTERISTICS
Frequency Response XLR output jacks (1 to 8) : -2 dB / +0 dB (20k ohms load, +4 dBu)
Phones jack: -3 dB / +0 dB (40 ohms load, 150 mW)
Total Harmonic Distortion + Noise XLR output jacks (1 to 8): 0.05 % (typical), Phones jack: 0.05 % (typical)
Dynamic Range XLR output jacks (1 to 8): 110 dB (typical)
Cross Talk@1kHz XLR input jacks (1 to 8): -80dB (Pad: ON, Input gain: +10 dBu, typical)
XLR output jacks (1 to 8): -100 dB (typical)
Nominal Input Level (Variable) XLR input jacks (1 to 8): -65 to -10 dBu (Pad: OFF) or -45 to +10 dBu (Pad: ON)
RCA input jacks (L/R): -18 to 0 dBu
Talkback input jack: -50 to -10 dBu
Input Impedance XLR input jacks (1 to 8): 14 k ohms, RCA input jacks (L/R): 10 k ohms,
Talkback input jack: 41 K ohms
Non Clip Maximum Input level XLR input jacks (1 to 8): +8 dBu (Pad: OFF) or +28 dBu (Pad: ON),
RCA input jacks (L/R): +18 dBu, Talkback input jack: +8 dBu
Nominal Output Level XLR output jacks (1 to 8): +4 dBu (Load impedance: 10 k ohms)
Output Impedance XLR output jacks (1 to 8): 600 ohms, Phones jack: 100 ohms
Recommended Load Impedance XLR output jacks (1 to 8): 10 k ohms or greater, Phones jack: 8 ohms or greater
Non Clip Maximum Output level XLR output jacks (1 to 8): +22 dBu (1 kHz, 10 k ohms load)
Phones jack: 150 mW + 150 mW (1 kHz, 40 ohms load)
Residual Noise Level (IHF-A, typical) -88 dBu (All faders : Min)
Equivalent Input Noise Level (E.I.N.) -126 dBu
OTHERS
Display 800 x 480 dots Wide VGA backlit TFT full color
Power Supply AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
Power Consumption 95 W
Dimensions 749.0 (W) x 626.0 (D) x 229.0 (H) mm, 29-1/2 (W) x 24-11/16 (D) x 9-1/16 (H) inches
Weight 19.8 kg, 43 lbs 11 oz
* When a REAC Splitter S-4000-SP or a switching hub is used in-line with REAC cables, the network latency will increase by the amount of processing delay introduced by the splitting device itself. The actual delay is dependent upon the specifications of the splitting device, (0dBu=0.775Vrms)
though the maximum delay amount for a single splitting device should be about 200 microseconds.
* In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
